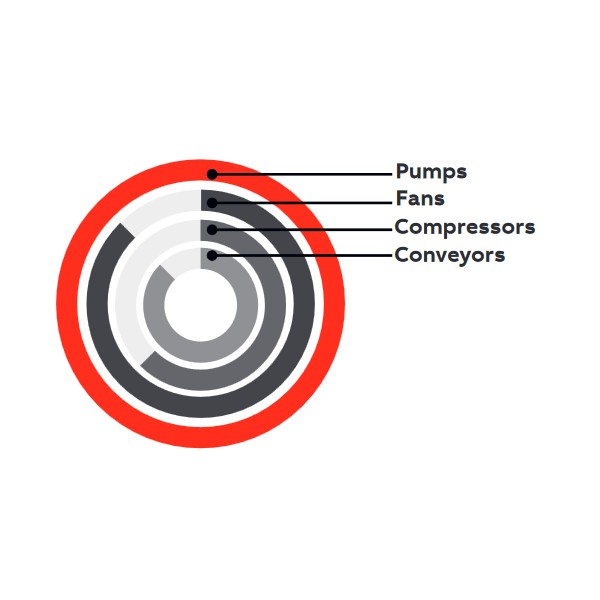

ABB PSTX Usage

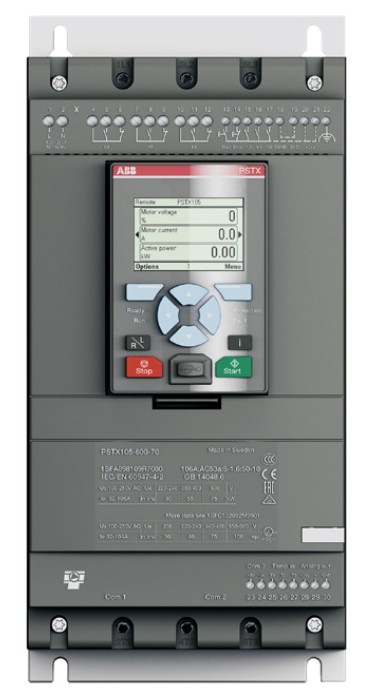

ABB PSTX Inside

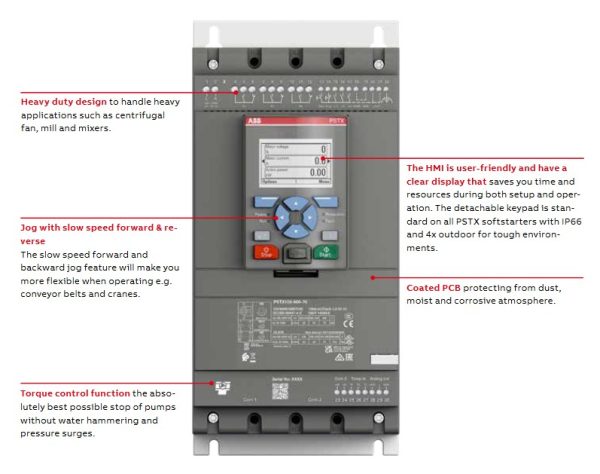

ABB PSTX1050

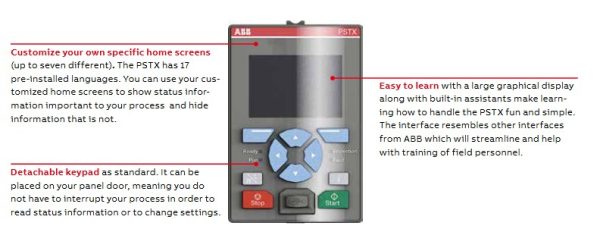

ABB PSTX Keypad

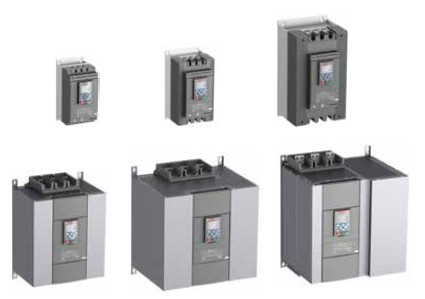

ABB PSTX Range

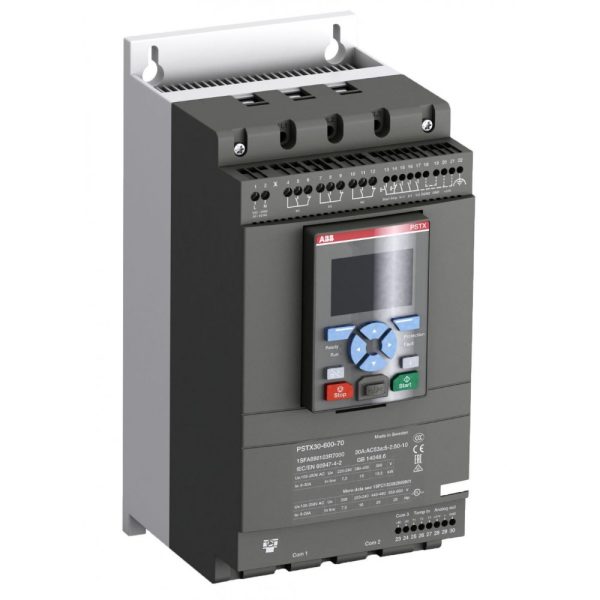

ABB PSTX Softstarter – The advanced range

SKU: PSTX Category: Tags: , ,

Description

To request a quote, use the tables below to choose a specific product and then use the options above to select the IEC kW (400V).

PSTX is an advanced Softstarter

The PSTX combines many years of research and product development with extensive knowledge of application specific requirements and needs. The PSTX is our latest advancement in motor control and protection and adds new functionality with increased reliability to any motor starting application.

Main benefits

  • Secure motor reliability
  • Improve installation efficiency
  • Increase application productivity.

Main features

  • Three-phase controlled
  • Operational voltage: 208-690 V AC
  • Wide rated control supply voltage: 100-250 V, 50/60 Hz
  • Rated operational current: 30…1250 A (inside delta: 2160 A)
  • Coated circuit boards
  • Torque control for excellent control of pumps.



Product Range

Rated operational voltage Ue, 208…600 V , rated control supply voltage Us, 100…250 V AC, 50/60 Hz
Normal starts, class 10, in-line. Heavy-duty starts, class 30, in-line.

Drive type /
Product code 		Normal Duty Heavy Duty
IEC kW (400V) IEC max A IEC kW (400V) IEC max A
PSTX30-600-70
1SFA898103R7000 		15 30 11 22
PSTX37-600-70
1SFA898104R7000 		18.5 37 15 30
PSTX45-600-70
1SFA898105R7000 		22 45 18.5 37
PSTX60-600-70
1SFA898106R7000 		30 60 22 45
PSTX72-600-70
1SFA898107R7000 		37 72 30 60
PSTX85-600-70
1SFA898108R7000 		45 85 37 72
PSTX105-600-70
1SFA898109R7000 		55 106 45 85
PSTX142-600-70
1SFA898110R7000 		75 143 55 106
PSTX170-600-70
1SFA898111R7000 		90 171 75 143
PSTX210-600-70
1SFA898112R7000 		110 210 90 171
PSTX250-600-70
1SFA898113R7000 		132 250 110 210
PSTX300-600-70
1SFA898114R7000 		160 300 132 250
PSTX370-600-70
1SFA898115R7000 		200 370 160 300
PSTX470-600-70
1SFA898116R7000 		250 470 200 370
PSTX570-600-70
1SFA898117R7000 		315 570 250 470
PSTX720-600-70
1SFA898118R7000 		400 720 315 570
PSTX840-600-70
1SFA898119R7000 		450 840 400 720
PSTX1050-600-70
1SFA898120R7000 		560 1050 450 840
PSTX1250-600-70
1SFA898121R7000 		710 1250 560 1050
